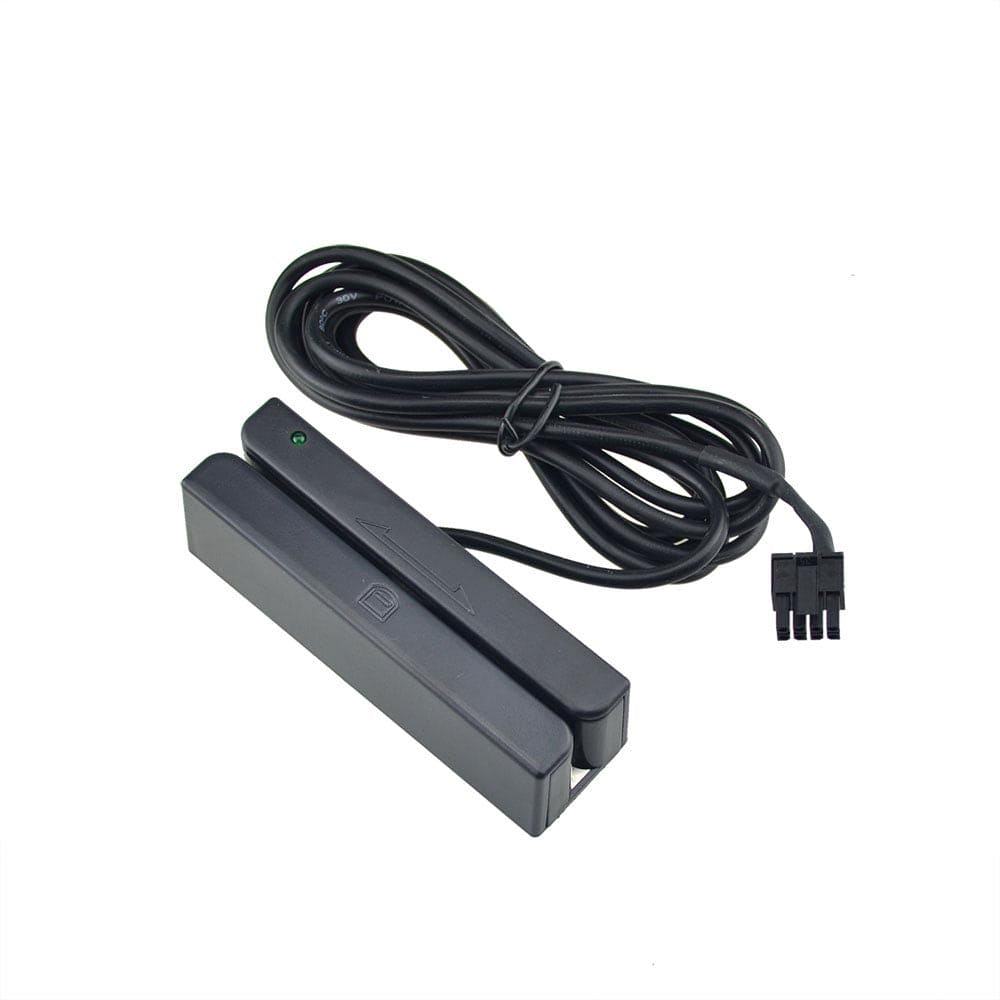

3 Tracks Card Reader Magnetic Stripe Reader MSR100

3 Tracks Card Reader Magnetic Stripe Reader MSR100

$12.00
$35.00 $12.00
Sale Sold out
Shipping calculated at checkout.

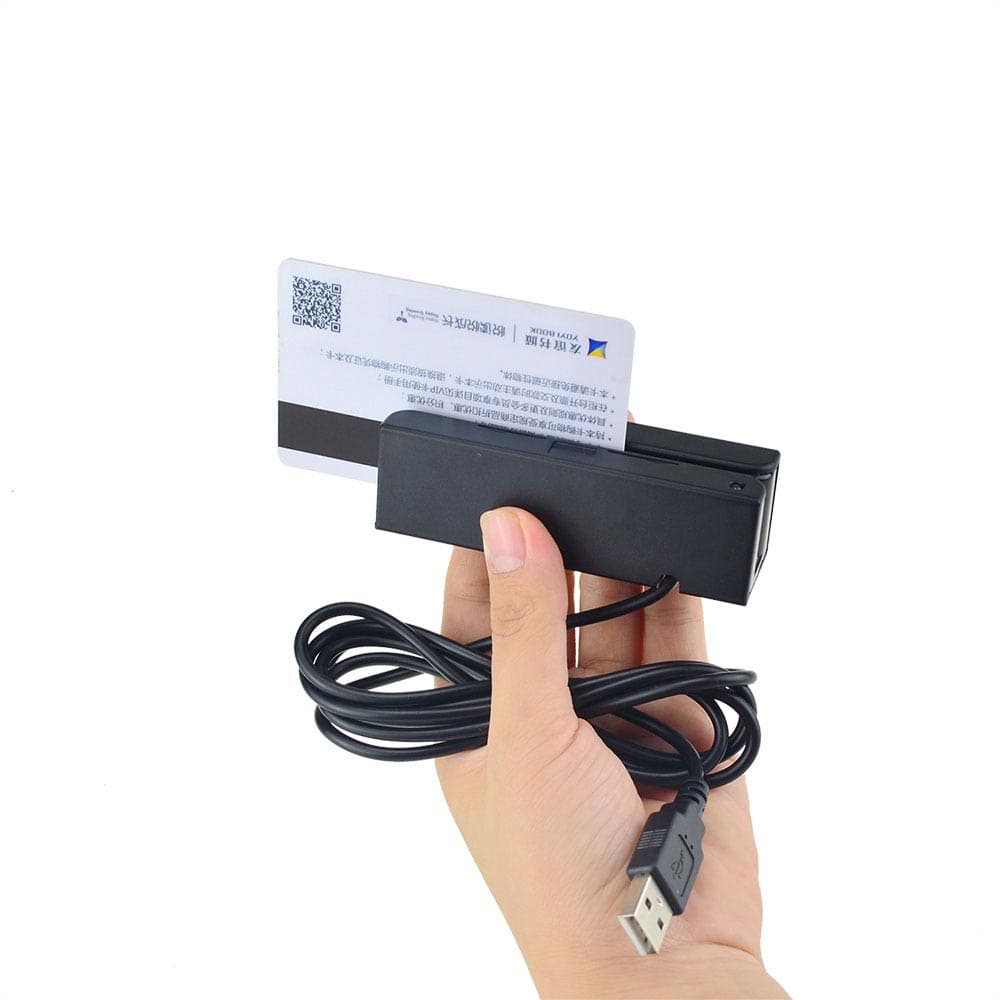

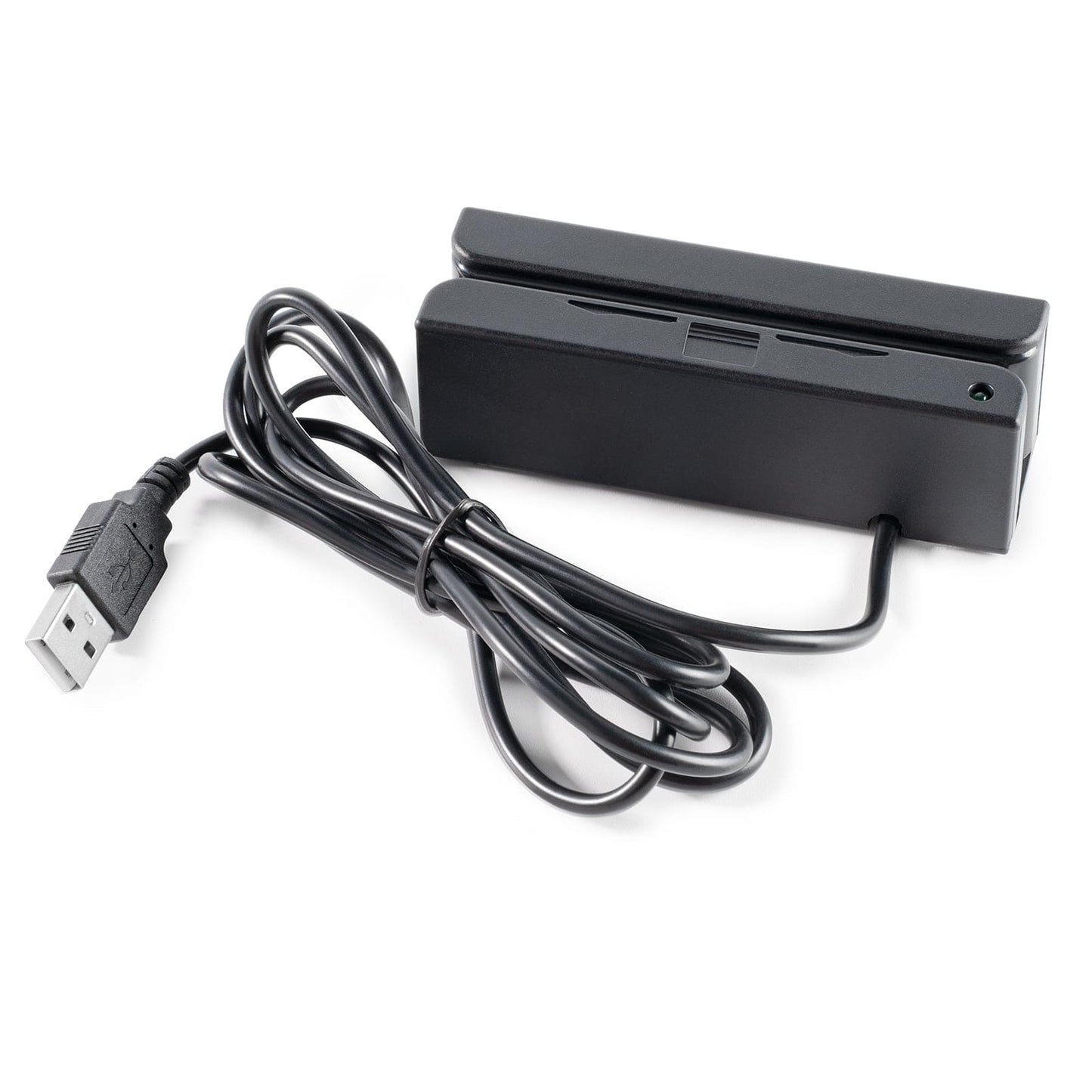

MSR100 Magnetic Stripe Reader – 3 Tracks USB Card Reader

Plug-and-Play USB Interface | High Compatibility | Easy MSR Software Configuration





Product Overview

The MSR100 Magnetic Stripe Card Reader is a reliable, plug-and-play USB card reader designed to deliver high-speed, bi-directional magnetic stripe reading with no drivers required. Whether used in access control, hotel check-in systems, or transportation fare collection, the MSR100 ensures seamless performance and easy setup across industries.

Supporting both HiCo and LoCo magnetic cards, this magnetic stripe reader complies with ISO 7811/12/13/14 standards and supports all three data tracks. With a compact, durable design and user-friendly MSR software, the MSR100 is a powerful and flexible solution for daily business operations.



⭐ Key Features

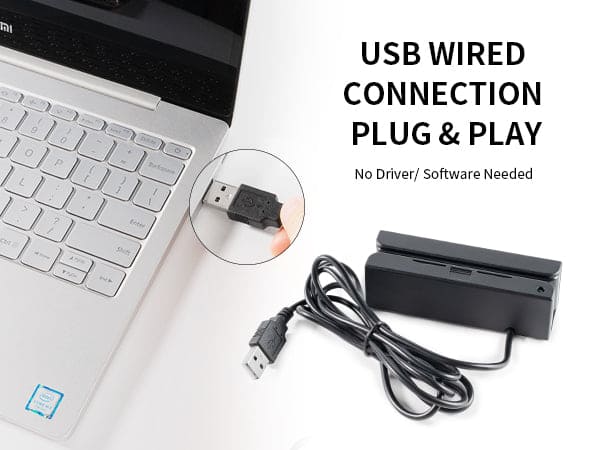

🔌 USB Plug-and-Play Interface

  • No drivers required for most systems
  • Instantly connects to PCs, POS systems, and terminals via standard USB interface

🎯 3-Track Magnetic Stripe Support

  • Reads Track 1, 2, and 3 data with high precision
  • Compatible with ISO7811, AAMVA, and CADMV data formats
  • Supports both HiCo and LoCo cards

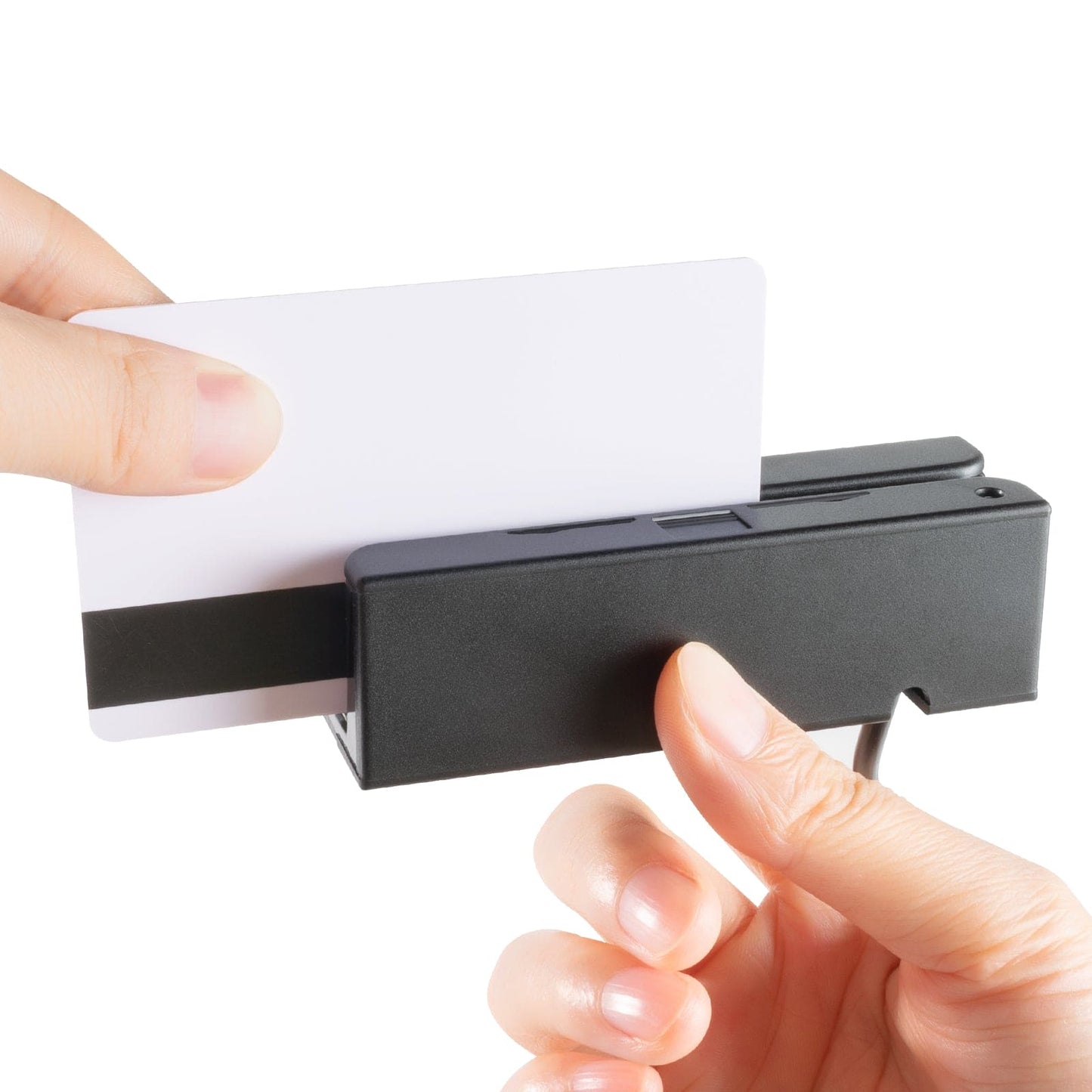

🔄 Bi-Directional Swipe Reading

  • Reads cards from either direction for greater user convenience

🧠 32-bit MCU for Fast Data Processing

  • Provides fast recognition and smooth integration into your software or POS system

🧰 User-Friendly MSR Software

  • Easily adjust settings such as:

    • Enable/disable specific tracks

    • Add or remove prefixes/suffixes

    • Disable buzzer sounds

  • Helps tailor the card reader experience to your exact operational needs


💡 Compact & Durable

  • Lightweight and built for long-lasting use in active environments
  • Swipe-tested for reliable performance


Technical Specifications

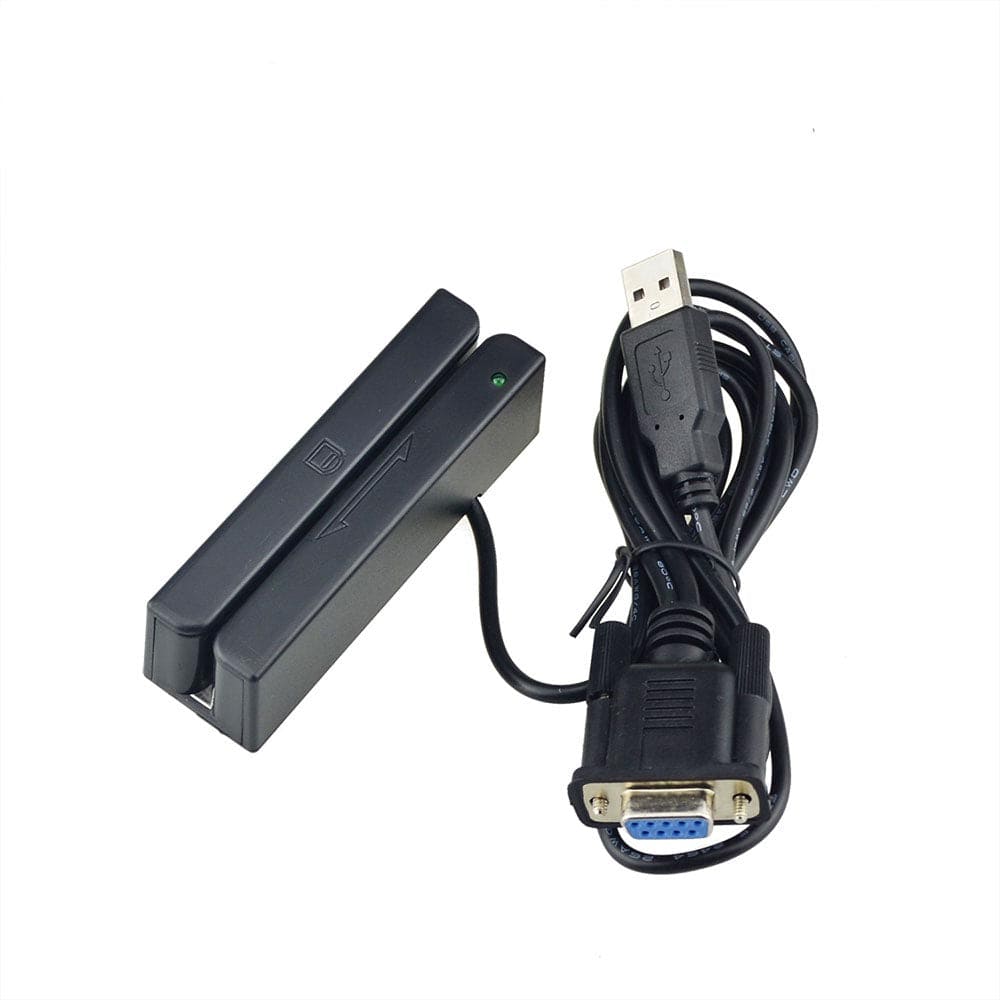

Model Name MSR100 Card Reader with RS232 interface
Dimension
Length:90mm, Width: 26mm, Height:28mm
Weight(g) 100g
CPU
8bit MCU
Electrical
DC 5V ± 5%  65mA
ISO Standard
 Track1 210bpi, 79 Alphanumeric Characters
Track2 75bpi, 40 Numeric characters
Track3 210bpi, 107 Numeric characters
Performance
 Swipe direction: Bidirectional
Free software & Manual: Yes
Free plastic rail/ Magnetic slot: Yes
Card thickness: Plastic 0.76 ± 0.08mm
Error rate: Less than 0.5%
Head function: Read only 1.5mm
Features
With indication of light
Low power consumption, good compatibility
Easy Programmable
Cards Standard
ISO, AAMVA, CADMV
OS
 MAC, Windows XP, Windows 7, Vista, Android
Communication
 USB
Lifetime of Header
800,000 card passes (1 pass one swipe)
Temperature
Operating Temperature: -10 ~ 50 C
Humidity
Relative Humidity: -20 %~ 70 % rh
Applications
Any movable data collection (Trade shows, Racing events)
Point of sales
Law enforcement (DMV card)
Attendance (Student ID, Membership card)
Conference Attendance
Classroom Attendance
Meeting Attendance
Door Locking Systems



🛠️ Applications

  • 🔐 Access Control – Secure building or room entry with ID/membership cards
  • 🏨 Hotels – Simplify guest check-in and keycard management
  • 🚖 Transportation – Ideal for taxi and bus fare collection systems
  • 🧾 POS Systems – Perfect integration with point-of-sale setups for quick card swipes

❓ Frequently Asked Questions

Q1: Does the MSR100 require software installation?
A: No installation is needed—it's a true plug-and-play magnetic stripe reader via USB. Configuration software is included for advanced settings.

Q2: What card formats are supported?
A: The reader supports HiCo and LoCo cards and reads all three tracks compliant with ISO7811, AAMVA, and CADMV standards.

Q3: What is the MSR software used for?
A: The included MSR software allows you to configure reader settings, manage track data, and customize outputs (e.g., add prefixes/suffixes or disable specific tracks).

Q4: Can the MSR100 integrate with POS systems?
A: Yes, it works seamlessly with most POS systems and computers with a USB port.



📞 Need More Info or a Custom Quote?

Looking for a reliable and easy-to-use card reader for your business?
👉 Contact us at Info@effon.com to request a quote, demo, or bulk pricing information.

EFFON – Magnetic Stripe Reader Solutions Trusted by Businesses Worldwide
