Cordless Finger Barcode Scanner 2D Barcode Reader FS03
Cordless Finger Barcode Scanner 2D Barcode Reader FS03
Couldn't load pickup availability
Cordless Finger Barcode Scanner FS03 – With Newland N1 2D Scan Engine
Small. Precise. Built for Retail & Light-Duty Logistics.
🔍 Compact, Comfortable, and High-Performance Barcode Scanning
The FS03 Cordless 2D Ring Barcode Scanner with Newland’s N1 CMOS scan engine is a lightweight, ergonomic barcode reader built for workers on the move. Designed as a finger-wearable scanner, FS03 frees your hands while delivering high-speed 1D and 2D decoding performance, making it ideal for supermarkets, retail stores, picking operations, and light warehouse use.
This scanner weighs only 40g, fits easily on your finger, and can switch between left- and right-hand use thanks to its 180° rotating design. With a Bluetooth wireless range up to 10 meters, FS03 ensures smooth data transmission and real-time barcode capture—even while you're on the go.
⭐ Key Features
🔎 Newland N1 2D Scan Engine
Installed with Newland 2D scan egine. Capable of decoding a wide range of 1D and 2D symbologies, including QR Code, Data Matrix, PDF417, and more—whether printed or displayed on a screen.
💡 Ultra-Light Finger-Wearable Design
Weighs less than 40g, one of the smallest and most portable wearable barcode scanners on the market. Ergonomic design increases user comfort during long shifts.
🔁 180° Adjustable for Either Hand
Quickly switch from left to right hand with its rotating scanner head, enhancing flexibility for all users.
🔋 Full-Shift Battery Life
Powered by a 500mAh rechargeable battery, FS03 supports up to 14 hours of continuous operation on a full charge.
🔌 Multiple Bluetooth Modes USB Support
Supports Bluetooth HID and SPP modes for seamless pairing with Android, iOS, and Windows devices. USB cable included for data transmission or wired usage if needed.
📦 Offline Mode – 6,000 Barcode Storage
Built-in 100KB memory stores up to 6,000 barcodes (15 bytes each) when offline, allowing operators to work even when Bluetooth is disconnected.
Technical Specifications
| Dimension | 52.5 36.5 46.5mm (L×W×H) |
| Weight(g) | 40 g |
| Scan Engines | CMOS QC80 |
| Working Horus | 14.58 hours, 5s/scan, 10499scans |
| Battery Capacity | 500mAh removable |
| Charging Time | 2 hours full charge |
| Bluetooth Transmission | 50Meter |
| Scanning Type | 1D:
Code 128, EAN-13, EAN-8, Code 39,
UPC-A, UPC-E, Codabar, Interleaved 2 of
5, ITF-6, ITF-14, ISBN, Code 93,
UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Standard 2
of 5, Plessey, MSI-Plessey
|
| Scanning Type | 2D:
PDF417、QR Code、Data Matrix
|
| Connectivity | Bluetooth 4.2 |
| Compatibility | Android, iOS, Windows |
|
Communication
|
Class 3 Bluetooth HID, SPP
|
| IP Rating | IP54 |
| Data Storage |
100KB for offline mode: 6000
15 bytes barcodes |
|
Operating Temperature
|
-5°C to 50°C
|
|
Storage
|
-20°C to 60°C
|

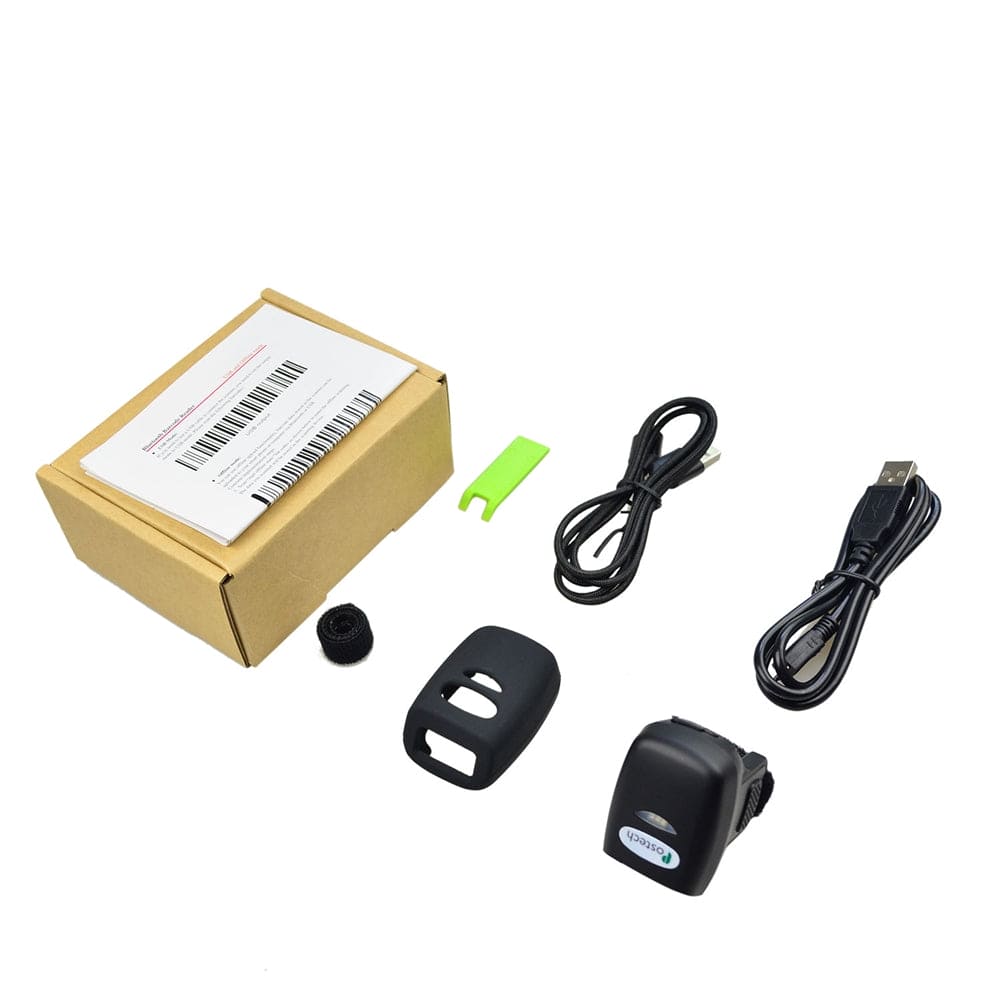

📦 Package Contents
✅ 1 × Effon FS03 2D Bluetooth Ring Scanner
✅ 1 × USB Charging Cable
✅ 1 × 2.4G USB Adaptor
✅ 1 × User Manual
🛍️ Best Used For
✅ Retail Stores & Supermarkets
✅ Inventory Picking & Replenishment
✅ Mobile POS & Price Checking
✅ E-commerce Light Warehouse Tasks
✅ Barcode Scanning from Mobile Screens
❓ Frequently Asked Questions
Q1: Can FS03 scan barcodes from a mobile phone screen?
A: Yes, the Newland N1 engine supports decoding barcodes from both printed labels and electronic displays.
Q2: How many barcodes can it store offline?
A: FS03 stores up to 6,000 barcodes in offline mode with 100KB of internal memory (based on 15 bytes per record).
Q3: Is it compatible with iOS devices like iPhones and iPads?
A: Absolutely. FS03 connects easily to iOS, Android, and Windows devices via Bluetooth HID or SPP modes.
Q4: Can I wear it all day without fatigue?
A: Yes. At just 40 grams, it's designed for all-day comfort with minimal weight on the finger.
Q5: Does it support USB data transfer?
A: Yes, FS03 can transfer data or be charged via USB magnetic cable when needed.
📞 Request Pricing or OEM Customization
Need a lightweight, affordable ring scanner for your team?
👉 Contact us at Info@effon.com for bulk pricing, OEM branding, or product inquiries.
EFFON – Trusted in Wearable Scanning for Retail and Mobile Applications
