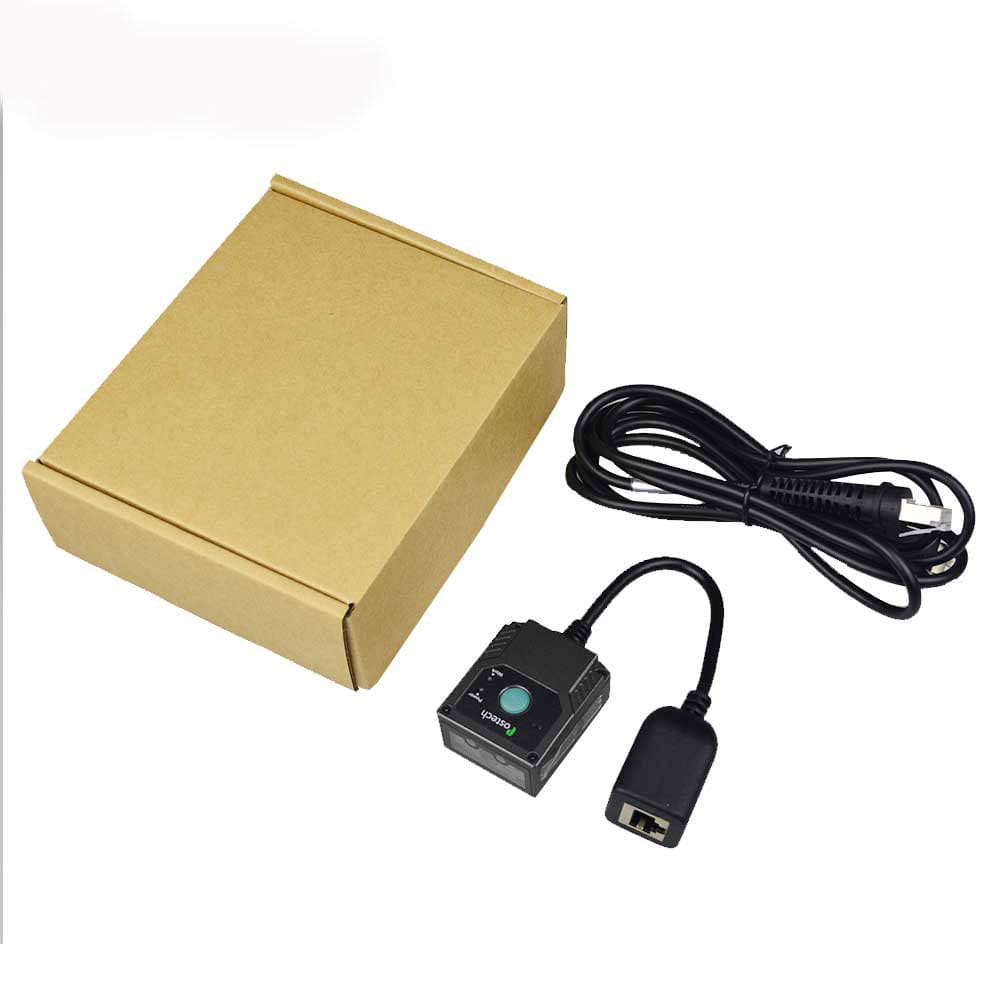

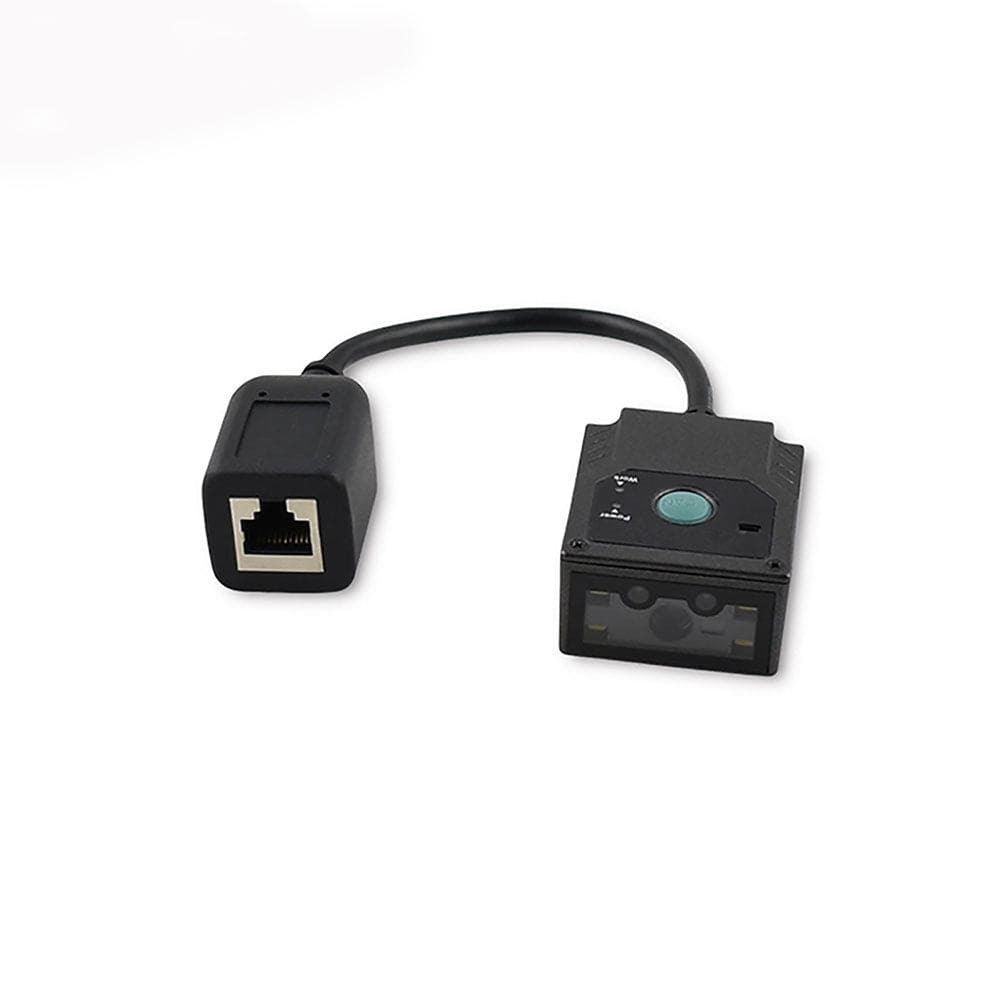

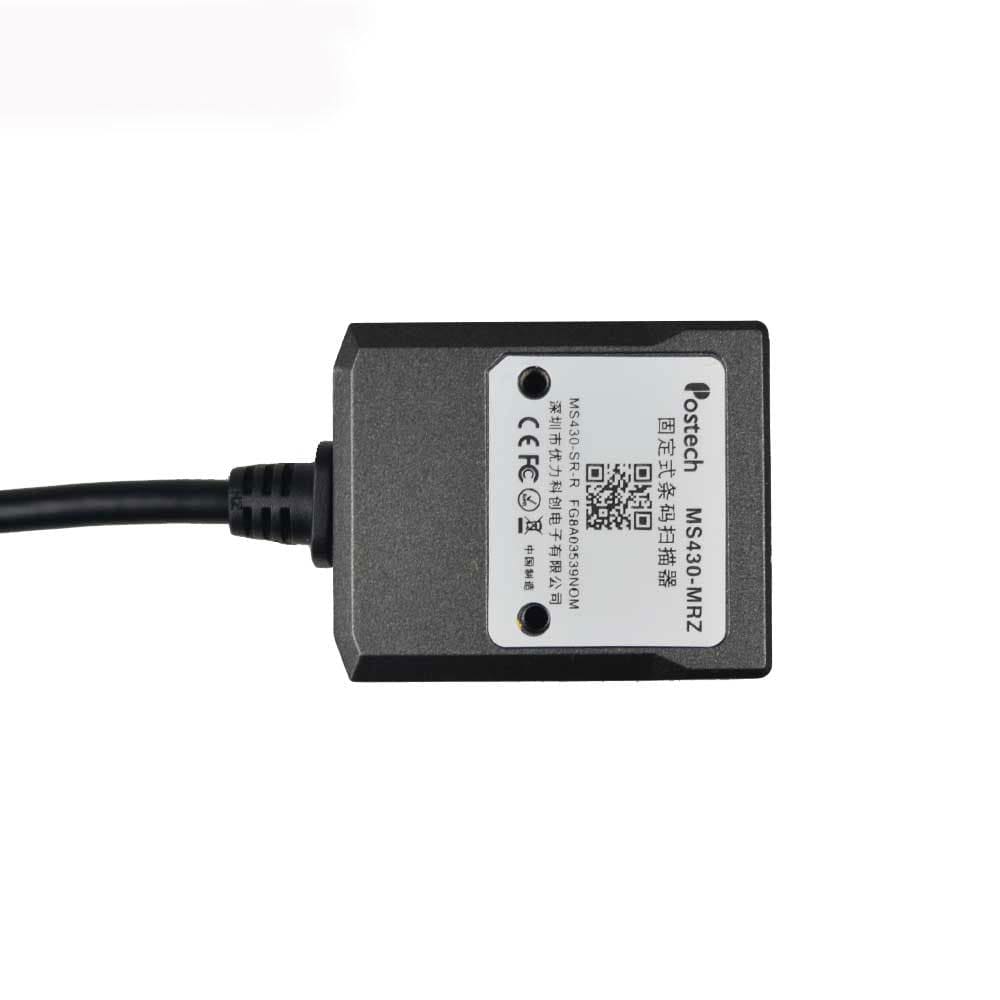

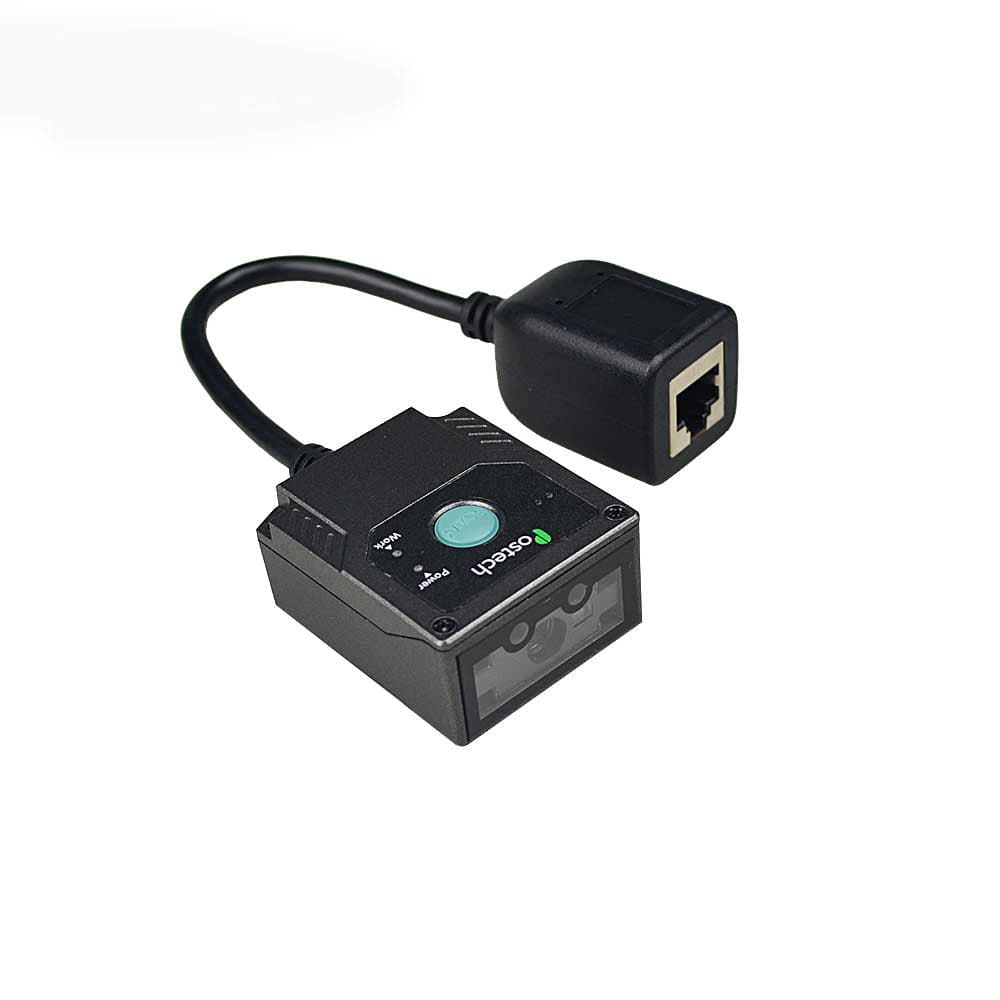

MS430 Fixed Mount Barcode Scanner – OCR Passport & ID Card Reader
Compact MRZ OCR Reader | Auto Scanning | Easy Kiosk Integration
Product Overview
The MS430 Fixed Mount MRZ OCR Reader is a compact, high-performance passport and ID card scanner designed for seamless integration into kiosks, travel terminals, and hospitality systems.
Built to decode the Machine Readable Zone (MRZ) of passports and ID cards, it provides fast and accurate access to personal data such as name, ID number, date of birth, and expiry date.
With IR/light auto trigger, USB or RS232 interface options, and plug-and-play functionality, the MS430 offers the ideal kiosk solution for self-service check-in, identity verification, and secure document processing.
⭐ Key Features

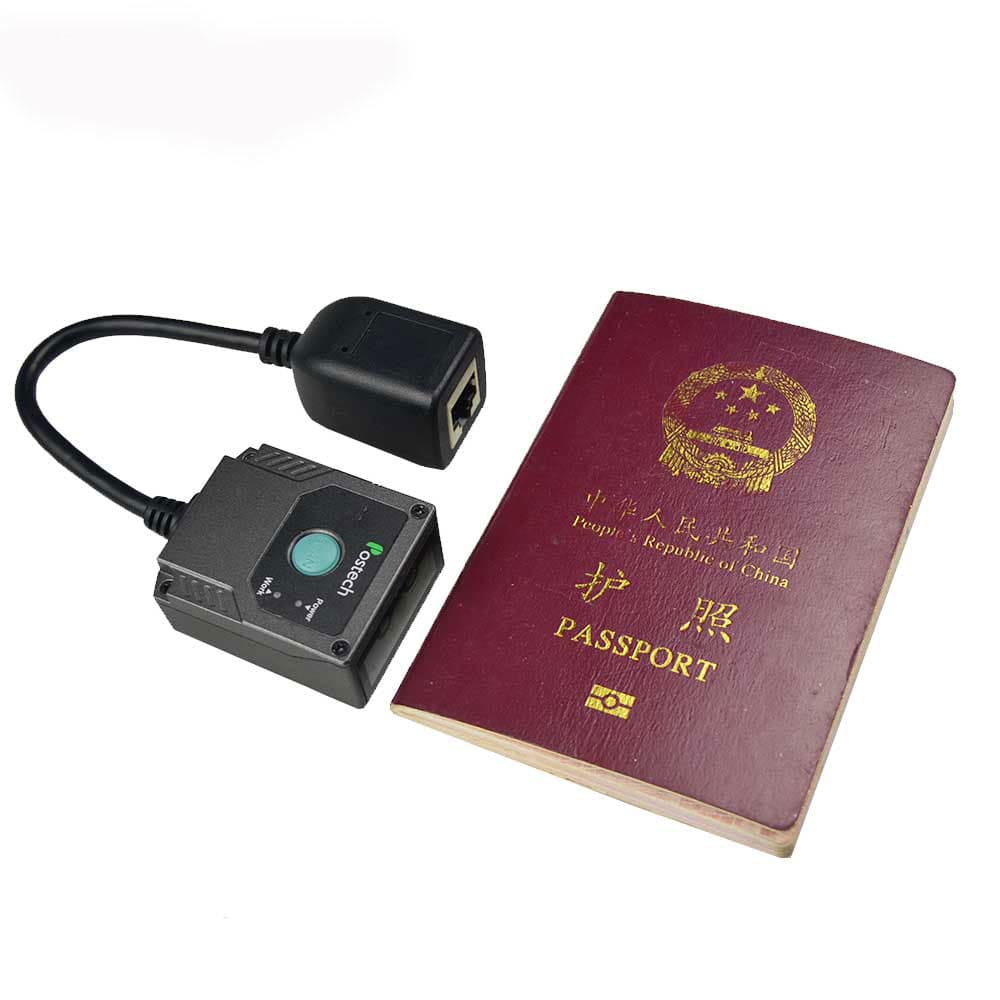

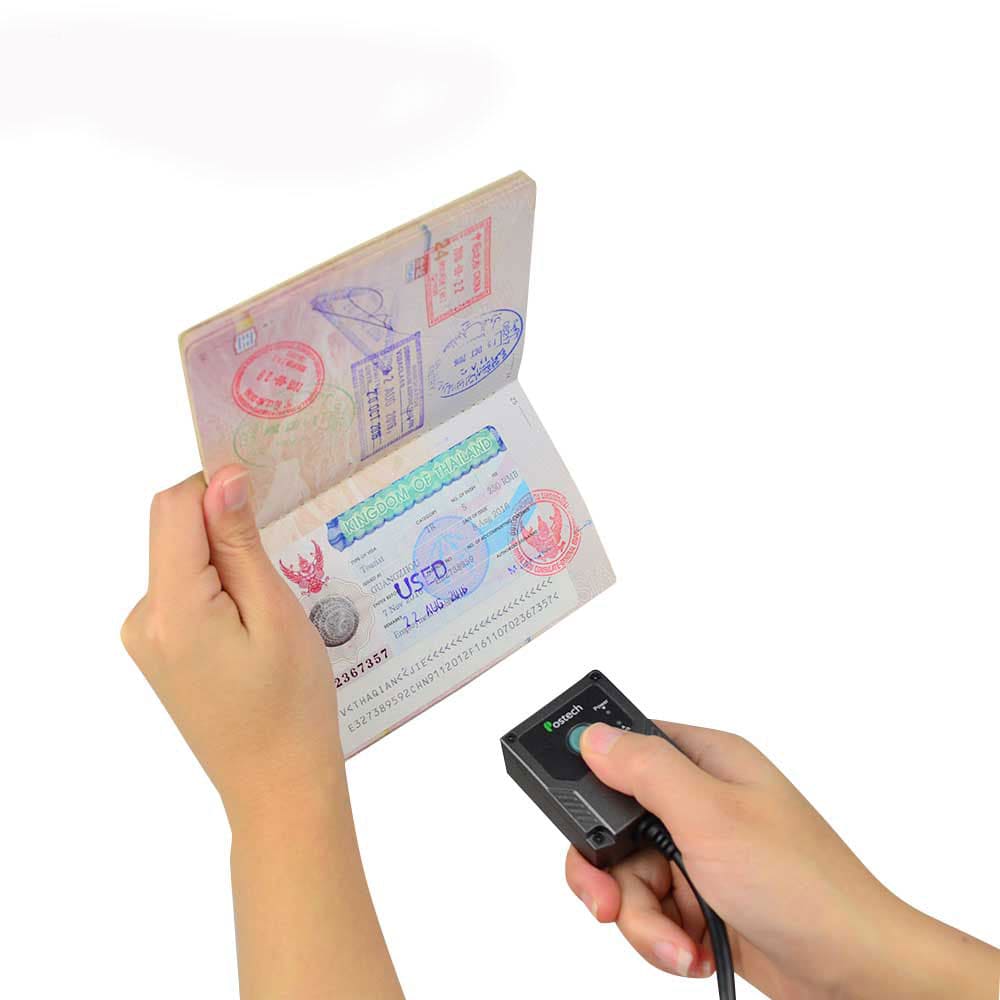

🧾 MRZ OCR Passport and ID Card Reading
- Accurately scans 3-line MRZ codes on passports and national IDs
- Extracts personal information including name, ID number, DOB, and expiry
🔦 IR/Light Auto Trigger for Hands-Free Operation
- Auto-detects and scans documents without manual trigger
- Ideal for self-service kiosks and unattended terminals
🖥️ Plug & Play with No Driver Required
- Simple and instant integration with most systems
- Supports Windows, Linux, and kiosk platforms without driver installation
🧱 Compact & Embedded Design
- Small footprint for easy fixed mounting inside kiosks, counters, and booths
- Ideal for space-limited setups like travel terminals, hotels, and retail ID scanning
🔌 Flexible Connectivity Options
- Available with USB and RS232 (Serial) interfaces
- Compatible with kiosk PCs, POS systems, and embedded hardware
💪 Built for Public Environments
- IP42-rated dust/splash resistance
- Survives 1.5-meter drop testing, perfect for rugged or unattended use
Technical Specifications
| Model Name | MS430 OCR Passport & ID Card Reader |
| Dimension | 41.5(W)×49.5(D)×24.5(H) |
| Weight(g) | 75g |
|
Voltage/Current
|
5 VDC +/-10% @
253mA (typical), 311mA (maximum)
|
| Resolution |
1280 pixels (H)x 800 pixels (V)
|
|
Light Source:
|
White LED（400nm~750nm
Green LED（510nm~540nm）
|
|
Interfaces Supported
|
USB, RS232
|
| Scanning Type | 1D: EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Cod
abar, UCC/EAN 128, RSS, Interleaved 25, ITF14, ITF6,
Standard 25, Matrix 25, COOP 25,Industrial 25, Plessey,
MSI Plessey, Code 11, Code 93, Code 49,Code 16K, etc.
|
| Scanning Type | 2D: PDF417, QR Code, DataMatrix, AZTEC, Hanshin Code,
Maxicode, Micro QR,Micro PDF417, GM , Code One, etc.
|
|
Operating Temperature
|
-20°C to 60°C
|
|
Storage
|
-40°C to 70°C
|
|
Shock specifications
|
Designed to withstand 1.5m(5’) drops
|
|
IP Rating
|
IP54
|
🧰 Applications
✈️ Airport Kiosks – Streamline passport check-in for self-service terminals
🏨 Hotels & Resorts – Speed up guest check-in and checkout
🚘 Car Rental Counters – Instantly scan ID cards and verify documents
🛍️ Duty-Free Shops – Fast ID capture for tourist shopping
🌐 Travel Agencies – Easy input of passport details for booking and visa services
🧾 Government Terminals – Identity verification for access and compliance
❓ Frequently Asked Questions
Q1: What type of codes can the MS430 read?
A: The MS430 reads 3-line MRZ OCR codes commonly found on passports and national ID cards.
Q2: Is it easy to embed into a kiosk?
A: Yes! Its compact design makes it ideal for fixed mount installations in all types of kiosk solutions.
Q3: Can it work without installing software?
A: Yes, the scanner is plug-and-play, requiring no additional drivers for most operating systems.
Q4: What interfaces are supported?
A: The MS430 offers USB and RS232 (serial) connectivity for flexible integration with kiosk or POS systems.
